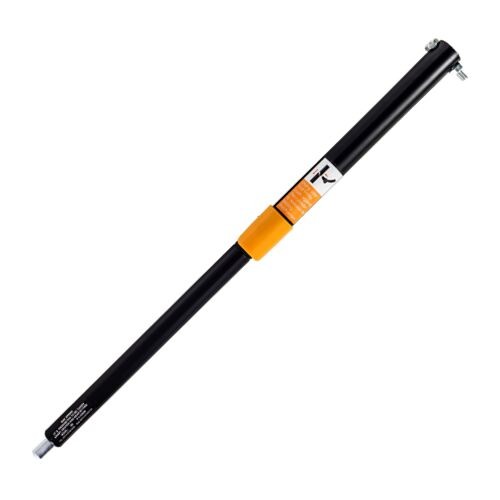

Safety Locking Gas Struts




Descriptions

Safety Locking Gas Struts, also called safety locking shroud gas springs, are different from normal gas struts. Such gas struts are equipped with a protection pipe on shaft end which pivot out when the gas struts are in the fully extended position. If the external load exceeds the gas strut force, the pipe will support itself on the front side of the pressure tube to prevent the shaft from compressing. To release the locking, the protection pipe must be removed from the locking position.

Usually, such gas struts are used for lifting treadmill decks. As a professional safety locking gas strut manufacturer in China, Yeswin has successfully developed a variety of high quality safety locking gas struts for treadmills. And now, almost 60% Chinese treadmill companies use Yeswin safety locking gas struts.

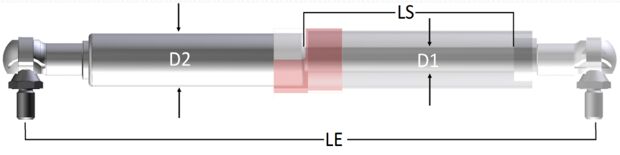

Specifications

D1 (mm)
D2 (mm)
LE (mm)
LS (mm)
F1 (N)
8 22 150–700 30–350 50–600
8
24 150–700
30–350
50–600
8 26 150–700
30–350
50–600
8 28
150–700
30–350
50–600
10
22 150–1000
30–450
100–1000
10
24 150–1000
30–450
100–1000
10
26 150–1000
30–450
100–1000
10
28 150–1000
30–450
100–1000


Advantages

- PTFE rings

- Low friction

- Low airflow noise, almost silence
- Excellent end damping effect

Applications
Overbed Tables, Passenger Seats, etc.
