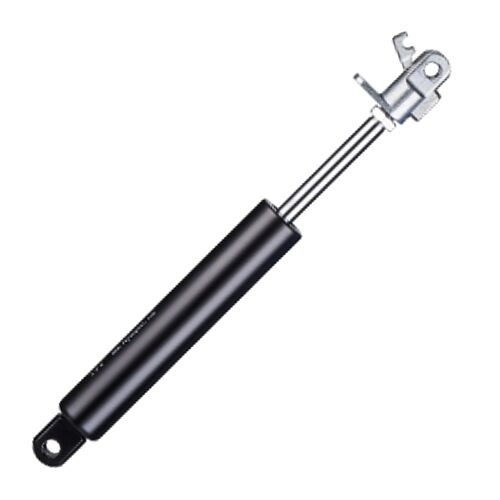

Adjustable Gas Springs




Descriptions

Adjustable Gas Spring, also called controllable gas spring, is a stepped variably fixed gas spring, which can be stopped at any position in both extended and compressed directions by a release mechanism that allows the piston rod to be locked at any time. When the release pin is pushed down by release mechanism, the adjustable gas spring will move normally like a compression gas spring. And when the release pin is released, the adjustable gas spring will be locked in that position.

In general, there are two kinds of adjustable gas springs, one is elastic, and the other is rigid. As a professional adjustable gas spring manufacturer in China, Yeswin has successfully developed a variety of high quality adjustable gas springs.

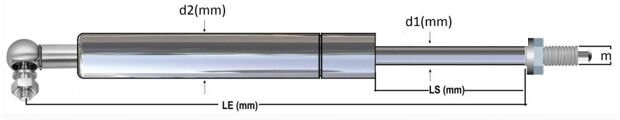

Specifications

d1 (mm)
d2 (mm)
LE (mm)
LS (mm)
m (mm) F1 (N)
8 22 150-700 30-300 M6×1 50-600
8
25 150-700
30-300
M6×1
50-600
8 27 150-700
30-300
M6×1
50-600
8 28
150-700
30-300
M6×1
50-600
10
22 150-1000
30-450
M8×1.25
100-1000
10
25
150-1000
30-450
M8×1.25
100-1000
10
27 150-1000
30-450
M8×1.25
100-1000
10 28 150-1000
30-450
M8×1.25
100-1000


Advantages

- PTFE rings

- Low friction

- Low airflow noise, almost silence
- Excellent end damping effect

Applications
Overbed Tables, Passenger Seats, Study Desks, etc.
