Compression Oil Dampers




Descriptions

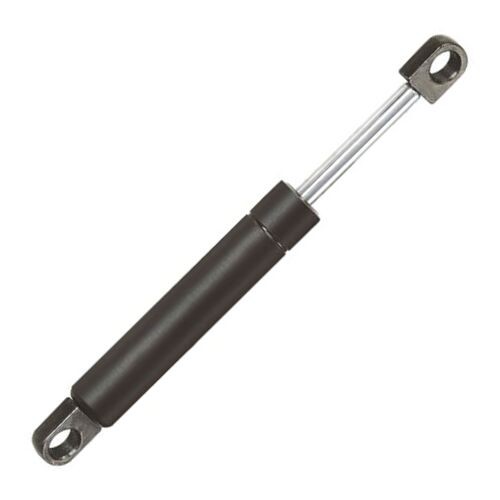

Dynamic Damping Gas Strut, also called dynamic damping gas spring, has a special longitudinal groove inside the pressure tube. The dampening effect is obtained from this groove, and the groove behave just like holes on the piston of standard gas springs. By increasing or reducing the groove cross section, the speed of motion over the entire stroke can be adjusted as desired.


One advantage with dynamic damping is that braking can be achieved without the piston rod pointing downwards. As a professional dynamic damping gas strut manufacturer in China, Yeswin has successfully developed a variety of high quality dynamic damping gas struts.


Specifications

d1 (mm)
d2 (mm)
LE (mm)
LS (mm)
m (mm) F1 (N)
6 15 150-500 30-200 M6×1 50-400
8
18
150-700
30-300
M6×1
50-700
8 22 150-700
30-300
M8×1.25, M6×1
50-700
10
22
150-1000
30-450
M8×1.25
100-1100



Advantages

- PTFE rings

- Low friction

- Low airflow noise, almost silence
- Excellent end damping effect

Applications
Hatchbacks, Hood Bonnets, Trunk Lids, etc.
